Shop / 80% Furnaces / Builder S8B1 Single Stage ECM
American Standard

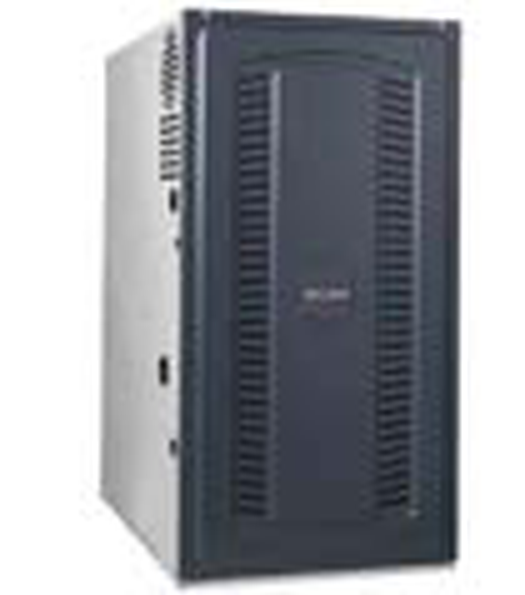

Builder S8B1 Single Stage ECM
BuilderGas FurnaceNon-stock
Price on request
Install priced on the call. Equipment price only.
Pick a model and send a request. The Centennial desk calls back with availability and a written price.
Model
- Size (tons)
- 2-3
- Output BTUs
- 32,000
- AFUE
- 80.0
- Flue size (in)
- 4
- Height
- 34"
- Width
- 14-1/2"
- Enquire only
- Written quote
- No online payment
Specifications
Select a row to choose that model.
| Model | Catalog status | Size (tons) | Output BTUs | AFUE | Flue size (in) | Height | Width | Depth | Weight | Fuse size | Filter size |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AMSS8B1A040M3PSCC | Non-stock | 2-3 | 32,000 | 80.0 | 4 | 34" | 14-1/2" | 28-3/4" | 102 lb | 15 | 14 x 25 x 1 |
| AMSS8B1B040M2PSCA | — | 2 | 32,000 | 80.0 | 4 | 34" | 17-1/2" | 28-3/4" | 128 lb | 15 | 16 x 25 x 1 |
| AMSS8B1B060M4PSCB | Non-stock | 3 | 48,000 | 80.0 | 4 | 34" | 17-1/2" | 28-3/4" | 130 lb | 15 | 16 x 25 x 1 |
| AMSS8B1B080M4PSCB | Non-stock | 3-4 | 64,000 | 80.0 | 4 | 34" | 17-1/2" | 28-3/4" | 137 lb | 15 | 16 x 25 x 1 |
| AMSS8B1C080M5PSCC | Non-stock | 4-5 | 64,000 | 80.0 | 4 | 34" | 21" | 28-3/4" | 142 lb | 15 | 20 x 25 x 1 |
| AMSS8B1C100M5PSCC | Non-stock | 4-5 | 80,000 | 80.0 | 4 | 34" | 21" | 28-3/4" | 144 lb | 15 | 20 x 25 x 1 |
| AMSS8B1D120M5PSCC | Non-stock | 5 | 96,000 | 80.0 | 4 | 34" | 24-1/2" | 28-3/4" | 160 lb | 15 | 24 x 25 x 1 |
